SCL 10A general purpose relay with large contact gap version

Song Chuan General Purpose Relay - SCL Series

10A general purpose power relay.
Contact rating up to 12A 250VAC (DPNO).
Epoxy sealed type and flux free.
Quick connect terminal or PCB terminal available.
Special version of larger contact gap 1.9mm. (IEC 255/VDC 0436) (DPNO only).
Optional to be equipped with lamp, diode, flashed contact, and flanged cover.
Complies with RoHS-Directive 2011/65/EU.

Part Series:	SCL
Contact Configuration	2A, 2C
Contact Rating(Resistive Load)	10A 240VAC; 10A 28VDC
Coil Voltage	DC: 6 - 120V AC:12 - 240V
Power Consumption	DC: 0.9W AC: 1.2VA

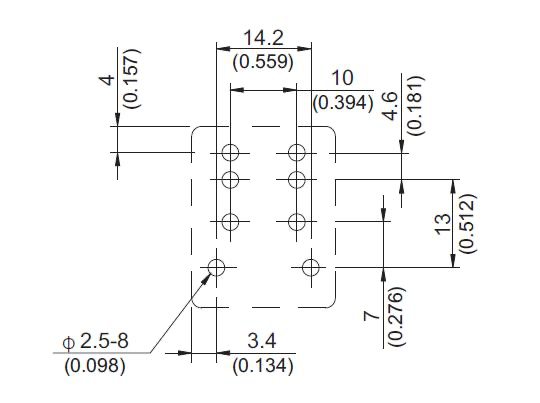

Song Chuan Series SCL Dimesnion Drawing

Documents and Downloads

Document	File Type	File Size	Download
SCL Series Datesheet	PDF	895 KB
