855A 30A PCB Relay with QC terminals

Song Chuan Power Relay - 855A Series

30A general purpose power relays.
UL class F and 10KV surge.
with and without quick terminals on top.
SPNO, SPNC, SPDT contact configuratons.
Open frame, dust cover sealed flux free and sealed washable flange cover etc. are both available.
Complies with RoHS-Directive 2011/65/EU.

Part Series:	855A
Contact Configuration	1A, 1B, 1C
Contact Rating(Resistive Load)	1A: 30A 240VAC; 1B: 15A 240VAC; 1C: NO/20A NC/10A 240VAC
Coil Voltage	DC: 5 - 110V
Power Consumption	DC: 0.93W

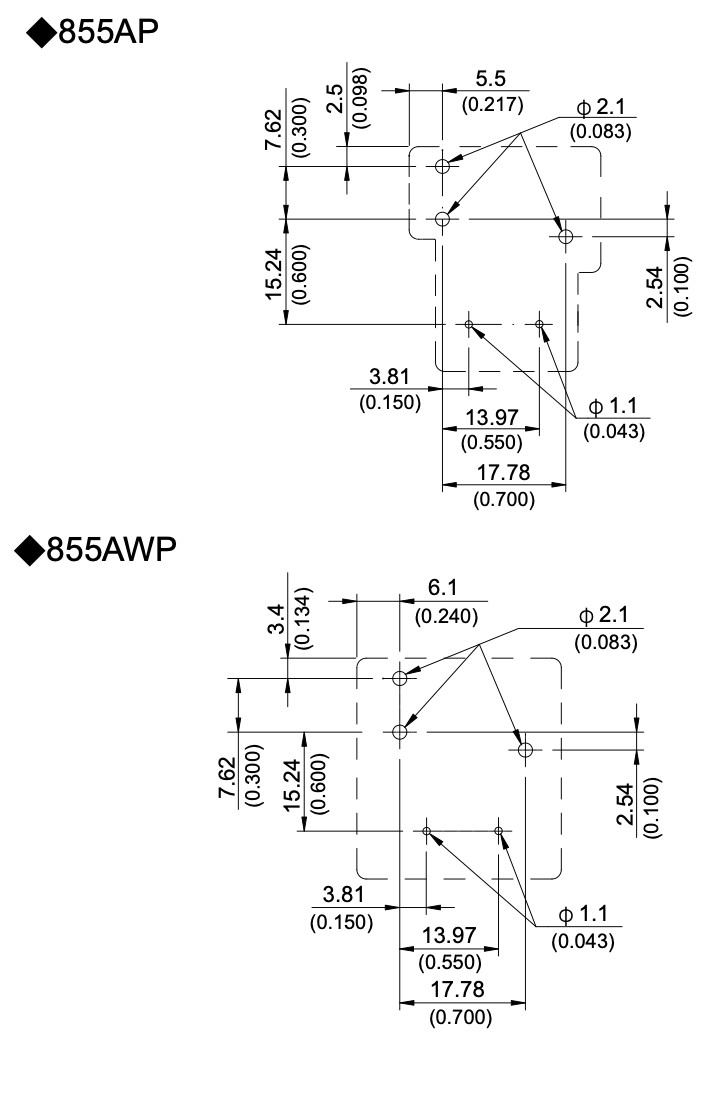

Song Chuan Series 855A Dimesnion Drawing

Documents and Downloads

Document	File Type	File Size	Download
855A Series Datesheet	PDF	838 KB
