KSK-1A35/1 Series Reed Switch

The KSK-1A35/1 is a miniature reed switch and high voltage reed switch with glass length of 10.5mm and diameter of 2.1mm. This reed switch has a rated power 10 W, Switching voltage 1,000 VDC, Switching current 0.7 Amp DC. Most used, flat leads.

Applications

High voltage, industrial, test and measurement (ATE)

Images

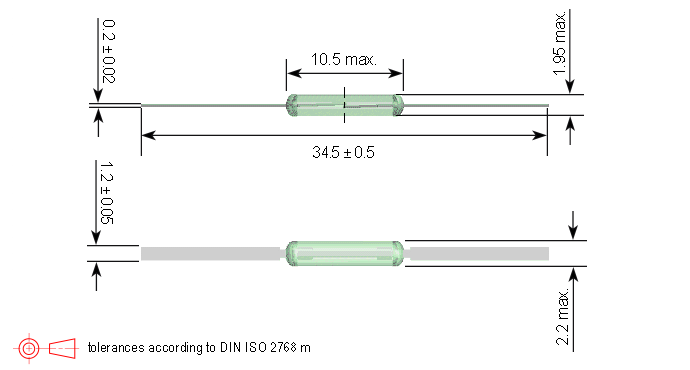

KSK-1A35/1 Series Reed Switch
Specifications



Overall Length mm (inches) 34.5 (1.358)
Glass Length Max. mm (inches) 10.5 (0.413)
Glass Dia. Max. mm (inches) 2.10 (0.082)
Lead Dia. mm (inches) 1.2 (0.047) x 0.2 (0.008)
Contact Form 1A (SPST) Normally Open (N.O.)
Pull-In Range 20-35 AT
Rated Power Max. 10W/1,000VDC/0.7 Amp DC
Documents and Downloads



Document File Type File Size Download
KSK-1A35/1 Datasheeet PDF 321 KB
