KSK-1C90U Series Reed Switch

The KSK-1C90U is a miniature (Form C) changeover reed switch or single pole double throw (SPDT) reed switch. Glass length of 14.0mm and diameter of 2.54mm. Rated power 10 W, Switching voltage 175 VDC, Switching current 0.5 Amp DC. Most used, UL approval.

Applications

General purpose, industrial, test and measurement (ATE)

Images

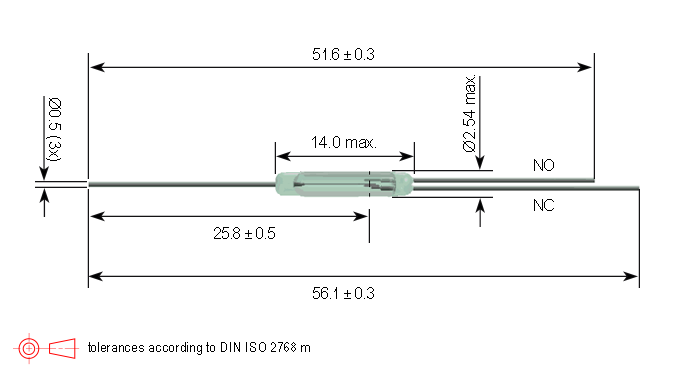

KSK-1C90U Series Reed Switch
Specifications



Overall Length mm (inches) 56.1 (2.208)
Glass Length Max. mm (inches) 14.0 (0.551)
Glass Dia. Max. mm (inches) 2.54 (0.100)
Lead Dia. mm (inches) 0.5 (0.019)
Contact Form /td> 1C (SPDT) Changeover<
Pull-In Range 15-40 AT
Rated Power Max. 10W/175VDC/0.5 Amp DC
Documents and Downloads



Document File Type File Size Download
KSK-1C90U Datasheeet PDF 317 KB
