MK23-35 Surface Mount Reed Switch

Miniature MK23-35 surface mount reed switch with glass length of 10.5mm and diameter of 2.1mm. Rated power 20 W, Switching voltage 200 VDC, Switching current 1 Amp DC. The MK23-35 surface mount reed switch is a bare glass version of our surface mount reed sensors, offering a more economic and compact design as compared to our over-molded reed sensors. Sold in Tape & Reel packing according to IEC 286/part 3 and is suitable for pick and place automation.

Applications

Used in On/Off control switch, proximity, motion, position detection in general purpose, appliance, automotive, military and aerospace, safety and security, telecommunications, test and measurement (ATE), transportation applications and much more

Images

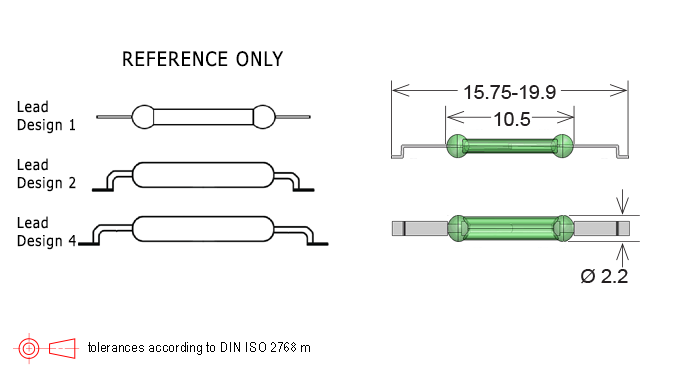

MK23-35 Surface Mount Reed Switch
Specifications



Contact Form 1A (SPST) Normally Open (N.O.)
Operating Range 10-30 AT
Rated Power Max. 20W/200VDC/1A
Lead Design 1, 2
Documents and Downloads



Document File Type File Size Download
MK23-35 Datasheeet PDF 382 KB
