• 8-Pin Socket: (Model 51X120) 10 Amps at 600VAC Rating
• 11-Pin Socket: (Model 51X016) 10 Amps at 300VAC Rating
• 12-Pin Socket: (Model 51X156) 10 Amps at 600VAC Rating

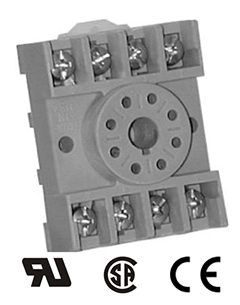

The Model 51X120 8-Pin Socket can be surface or DIN-rail mounted and is suitable for use up to 600 VAC.

The thermoplastic body can withstand temperatures up to 300o F continuously without melting or electrical breakdown. Terminals are #6-32 screws, and are suitable for use with wire sizes up to two #12 AWG. The one piece molded body does not require a separate insulator strip.

The Model 51X120 is UL Recognized, CSA Certified, and CE (European Conformity) Accepted.

The Model 51X016 11-Pin Socket can be surface or DIN-rail mounted and is suitable for use up to 300 VAC.

The thermoplastic body can withstand temperatures up to 300oF continuously without melting or electrical breakdown. Terminals are #6-32 screws, and are suitable for use with wire sizes up to two #12 AWG. The one piece molded body does not require a separate insulator strip.

The Model 51X016 is UL Recognized, CSA Certified, and CE (European Conformity) Accepted.

The Model 51X156 is a 12-pin heavy duty socket and can be used with Time Mark’s models 261XBXP and 261XBXPR Alternating Relays.

Pressure clamp screws are #6-32 Zinc plated steel with a wire range of #12 to #22 AWG. Contacts are nickel plated brass. This socked is rated up to 600VAC and is UL Recognized, CSA Certified, and CE (European Conformity) Accepted.
