Compact and low-profile design with improved soldering strength and contact sealing construction.

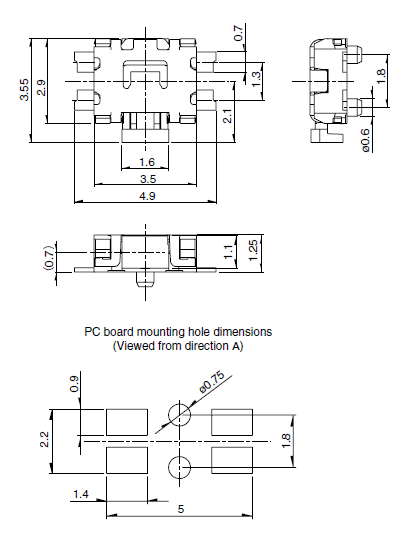

• Compact and low-profile design with outer dimensions of 3.5×3.55×1.25mm suitable for high-density mounting.
• The Side-pushTM TACT Switch operates in direction in horizontal to the PC board.
• Contact sealing structure of high reliability.
• Available for reflow soldering.

• For the operating controls on mobile phones, CD players, MD players, MP3 players, and Personal Digital Assistants.
