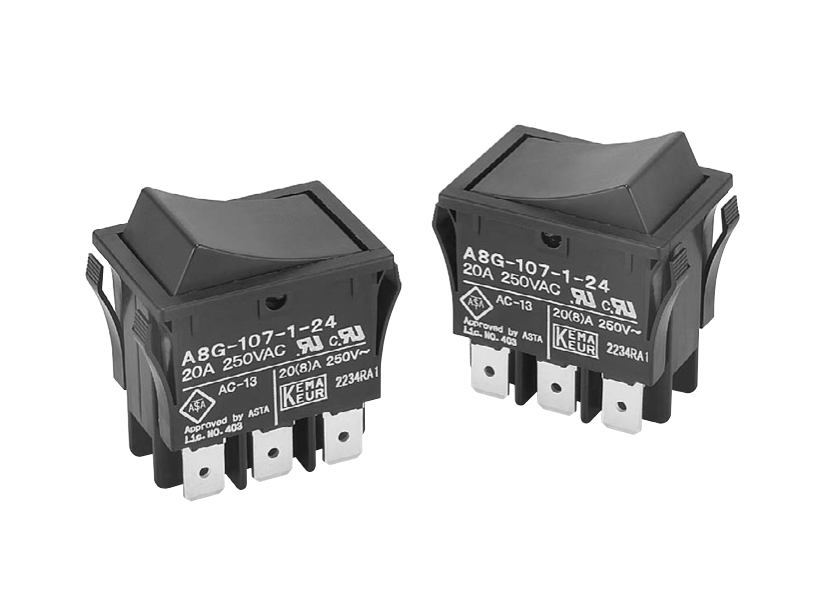

Ratings / Characteristics

Ratings

Rated load Non-inductive Inductive
Resistive load Lamp load Inductive load Inductive motor load
250 VAC 20A 10A 8A 8A

Note: 1. The non-inductive lamp load has an inrush current 10 times steady current.
2. The inductive load has a power factor of 0.4 minimum (AC).
3. The motor load has an inrush current 6 times steady current.
The above ratings were tested under the following conditions:
1. Ambient temperature: 20±2 °C
2. Ambient humidity: 65±5 %RH
3. Switching frequency: 7 times/min.

Characteristics

Permissible operating speed Mechanical 20 operations/min max.
Electrical Switching frequency: 7 times/min.; Coil operation: 7 times/min.
Insulation resistance 100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance
(initial value)		 100 mΩ max.
(6 to 8 VDC, 1 A, voltage drop method)
Dielectric strength Between terminals
of the same polarity		 2,000 VAC, 50/60 Hz, for 1 min
Between terminals
of the different
polarity		 2,000 VAC, 50/60 Hz, for 1 min
Between charged
metal parts and the
ground terminal		 4,000 VAC, 50/60 Hz, for 1 min
Vibration resistance Malfunction 10 to 55 Hz, 1.5-mm double amplitude
Shock resistance Malfunction 98 m/s2 (10G)
Destruction 500 m/s2 (50G) max.
Durability Malfunction Switching operation 100,000 times min.
Electrical Switching operation 50,000 times min.
Inrush current 100 A max.
Degree of protection IEC IP40
Contact release time
(see note)		 100 ms max.
Ambient operating temperature -10 to +55 °C (with no icing or condensation)
Ambient operating humidity 45 to 85 %RH

Note: For the codition in individual standard, contact your OMRON sales representative.
Contact release time is the period of time during which contacts 1 and 2 and contacts 4 and 5 are released after voltage is imposed on the coil.
